Weigh Safe Adjustable 180 Trailer Hitch Mount - 2.5" Hitch - 10" Drop - 11" Rise
Weigh Safe LTB10-2.5 Adjustable 180 Trailer Hitch Mount - 2.5" Hitch - 10" Drop - 11" Rise
Weigh Safe Adjustable 180 Trailer Hitch Mount - 2.5" Hitch - 10" Drop - 11" Rise

Alternative Views:


Price: $334.00
MFG P/N: LTB10-2.5
MFG: Weigh Safe
UPC #: 653863202199

Quantity in Stock :

Free Shipping
Availability: In Stock
Qty:

Description

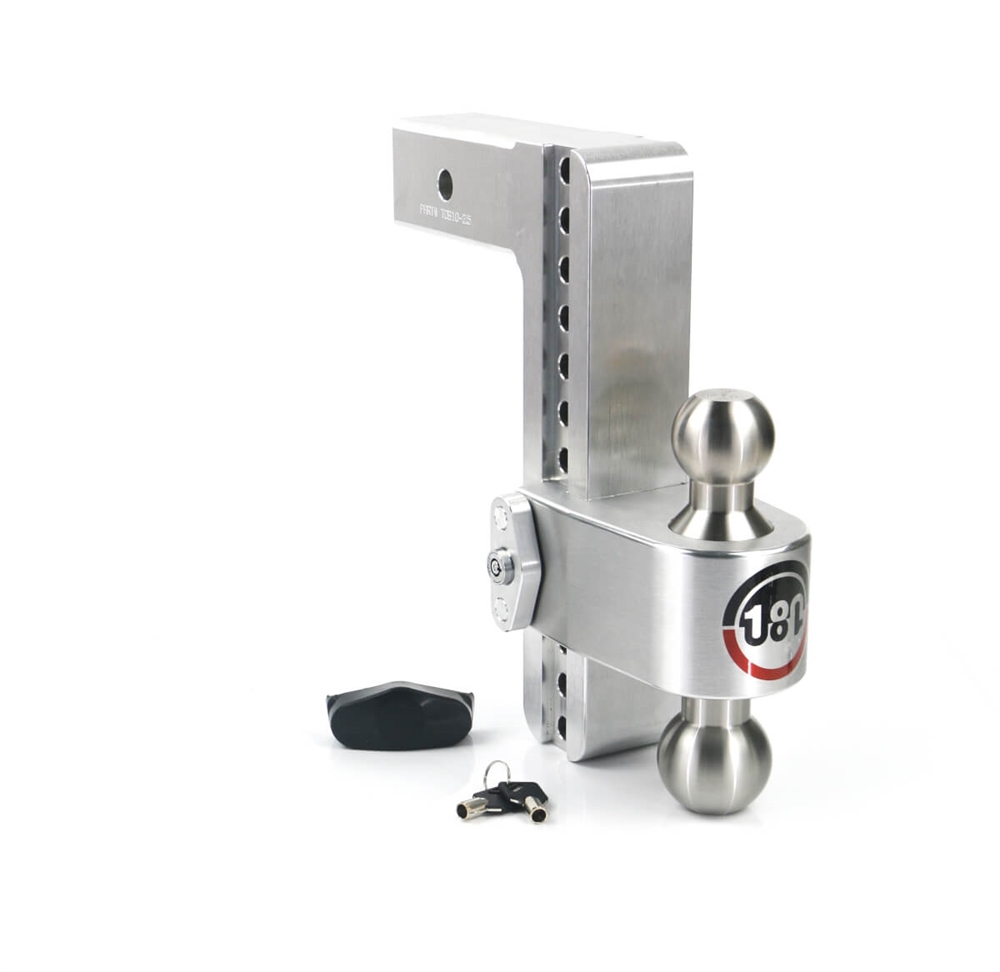

The Weigh Safe Hitch is an adjustable 180-degree trailer hitch mount that features a 2" and a 2-5/16" hitch ball on opposite ends of the ball mount platform. With both balls connected on the platform, you won't have to keep track of separate balls! Simply just flip over the platform to the ball needed for towing, hitch-up and go! Can be used in the drop or rise position to best suit your application.
  • Ball mount with included combo hitch ball lets you hook up your trailer to your tow vehicle
  • Stowable design lets you store the ball and mounting platform underneath your vehicle
  • Adjustable height lets you tow trailers of different heights with the same vehicle
    • Adjusts in 1" increments
  • 2 Different-size hitch balls let you tow trailers with different coupler sizes
  • 6061 T6 billet aluminum shank and mounting platform provide superior strength and durability
    • Solid block construction provides greater strength than hollow steel competitors while also maintaining a light weight
  • Stainless steel hitch balls are corrosion resistant
  • Hitch Size: 2.5"
  • Drop: 10"
  • Rise: 11"
  • Max Gross Trailer Weight:
    • 2" Ball: 8,000 lbs
    • 2-5/16" Ball: 14,500 lbs
  • Max Tongue Weight: 2,200 lbs
  • Hitch Mount Weight: 20 lbs
  • Hitch Pin Hole Diameter: 5/8"

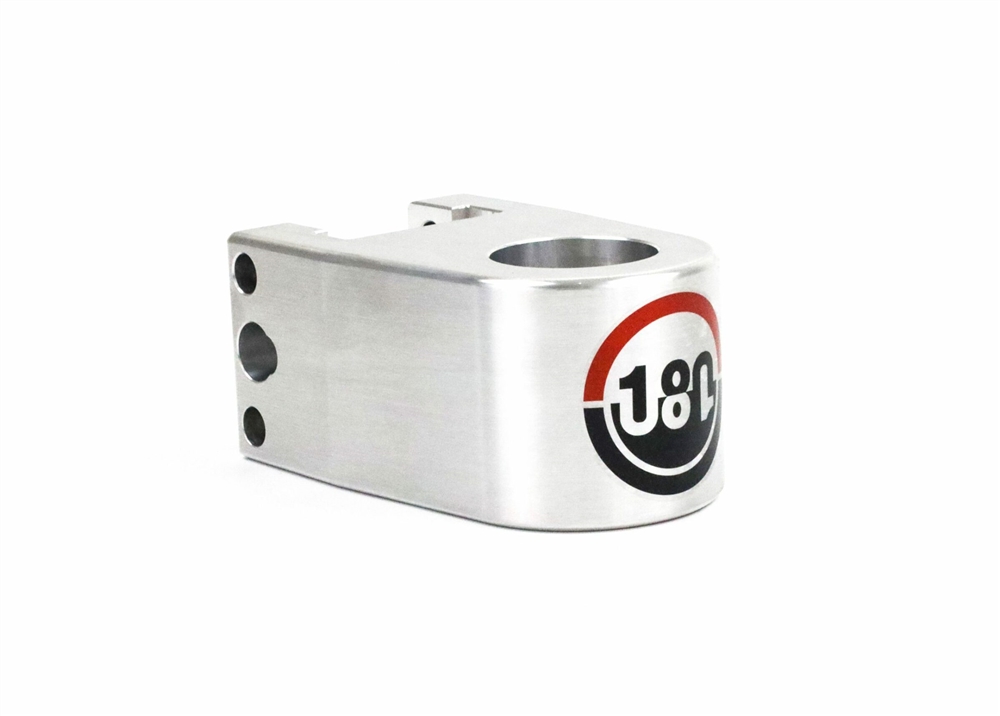

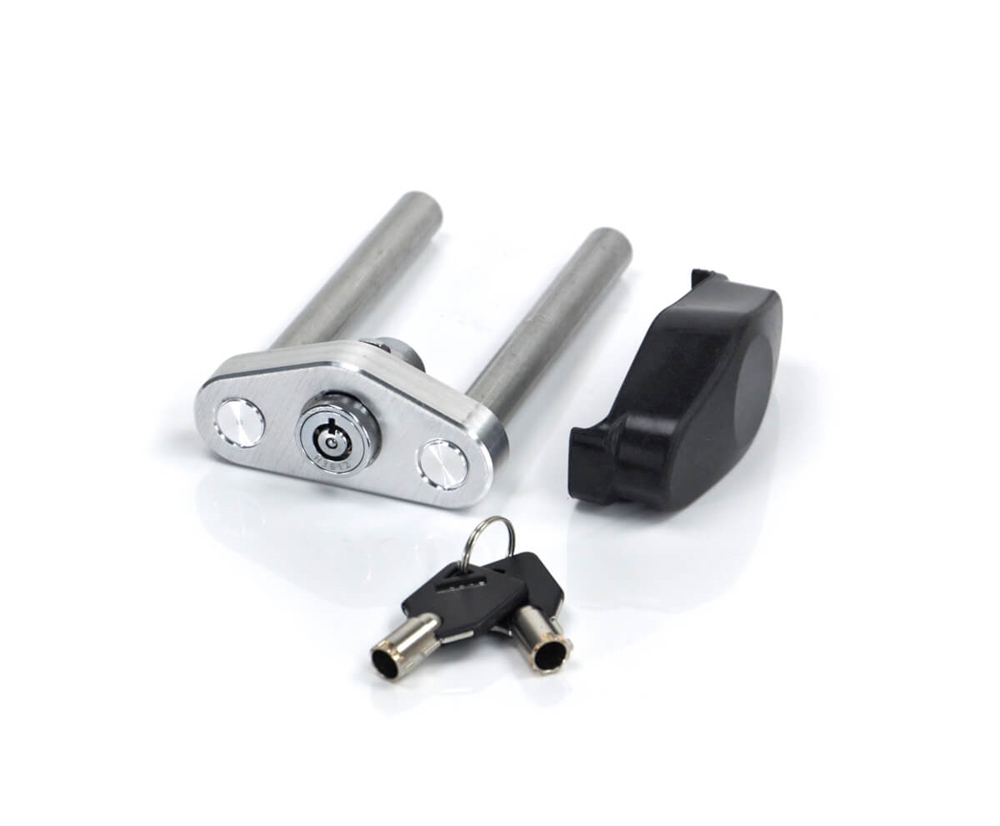

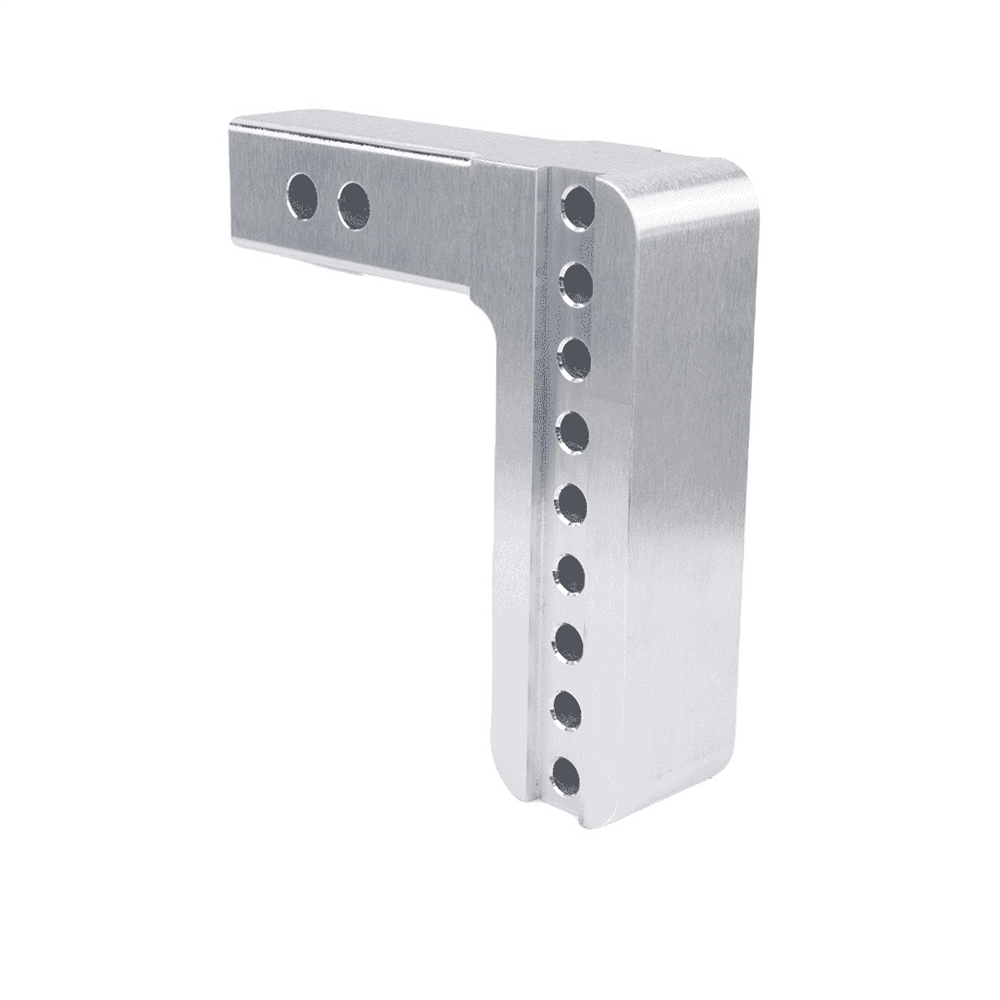

  • Includes: (1) Drawbar, (1) 180 slider, (1) Combo ball. (1) Ball retaining pin, (1) Key lock assembly and (1) Dust lock cover
    • Hitch pin and clip or hitch lock are sold separately
  • SAE J684 certified and VESC Regulations V-5 compliant
  • Limited 90 day manufacturer warranty
  • Made in the USA
  • Installation Instructions

Weigh Safe Adjustable 180 Trailer Hitch Mount - 2.5" Hitch - 10" Drop - 11" Rise

Additional Product Information
With Built-In Weight Scale

Hitch Size Drop Rise GTW 2" Ball GTW 2-5/16" Ball Tongue Weight Product Code
2" 6" 7" 8,000 lbs 10,000 lbs 1,500 lbs WS6-2
2" 8" 9" 8,000 lbs 10,000 lbs 1,500 lbs WS8-2
2.5" 10" 11" 8,000 lbs 14,500 lbs 2,200 lbs WS10-2.5
3" 10" 11" 8,000 lbs 21,000 lbs 2,200 lbs WS10-3
2" 10" 11" 8,000 lbs 10,000 lbs 1,500 lbs WS10-2
2.5" 4" 5" 8,000 lbs 14,500 lbs 2,200 lbs WS4-2.5
2" 4" 5" 8,000 lbs 10,000 lbs 1,500 lbs WS4-2
2.5" 6" 7" 8,000 lbs 14,500 lbs 2,200 lbs WS6-2.5
2.5" 8" 9" 8,000 lbs 14,500 lbs 2,200 lbs WS8-2.5
3" 6" 7" 8,000 lbs 21,000 lbs 2,200 lbs WS6-3

Without Built-In Weight Scale

Hitch Size Drop Rise GTW 2" Ball GTW 2-5/16" Ball Tongue Weight Product Code
2.5" 4" 5" 8,000 lbs 14,500 lbs 2,200 lbs LTB4-2.5
2.5" 10" 11" 8,000 lbs 14,500 lbs 2,200 lbs LTB10-2.5
2" 8" 9" 8,000 lbs 10,000 lbs 1,500 lbs LTB8-2
3" 10" 11" 8,000 lbs 21,000 lbs 2,200 lbs LTB10-3
2" 4" 5" 8,000 lbs 10,000 lbs 2,200 lbs LTB4-2
2.5" 6" 7" 8,000 lbs 14,500 lbs 2,200 lbs LTB6-2.5
2" 10" 11" 8,000 lbs 10,000 lbs 1,500 lbs LTB10-2
2" 6" 7" 8,000 lbs 10,000 lbs 1,500 lbs LTB6-2
3" 6" 7" 8,000 lbs 21,000 lbs 2,200 lbs LTB6-3
2.5" 8"
9" 8,000 lbs 14,500 lbs 2,200 lbs LTB8-2.5
3" 8" 9" 8,000 lbs 21,000 lbs 2,200 lbs LTB8-3
