The Weigh Safe Adjustable 2-Ball Trailer Hitch Mount is the one and only trailer hitch with a built-in scale that signals you to adjust your load before you hit the road, resulting in a much safer and enjoyable towing experience. With the Weigh Safe’s built-in scale, measuring your tongue weight is as easy as coupling your trailer to your ball mount.
- Ball mount with included hitch balls lets you hook up your trailer to your tow vehicle
- Tongue Weight scale built into the ball mount platform helps you balance your trailer
- Promotes safe towing by letting you know if your load needs to be adjusted before you tow
- Simple operation by automatically providing you a measurement every time you couple your trailer
- Eliminates the need for separate or commercial scales
- Stowable design lets you store the ball and mounting platform underneath your vehicle
- Adjustable height lets you tow trailers of different heights with the same vehicle
- 2 Different-size hitch balls let you tow trailers with different coupler sizes
- 6061 T6 billet aluminum shank and mounting platform provide superior strength and durability
- Solid block construction provides greater strength than hollow steel competitors while also maintaining a light weight
- Stainless steel hitch balls are corrosion resistant
- Hitch Size: 2"
- Drop: 6"
- Rise: 7"
- Max Gross Trailer Weight:
- 2" Ball: 8,000 lbs
- 2-5/16" Ball: 10,000 lbs
- Max Tongue Weight: 1,500 lbs
- Hitch Mount Weight: 18 lbs
- Hitch Pin Hole Diameter: 5/8"
- Includes: (1) Drawbar, (1) Slider with gauge, (1) 2" ball, (1) 2-5/16" ball, (1) Ball retaining pin, (1) Lock plate key assembly and (1) Dust lock cover
- Hitch pin and clip or hitch lock are sold separately
- SAE J684 certified and VESC Regulations V-5 compliant
- Limited 90 day manufacturer warranty
- Made in the USA
- Installation Instructions

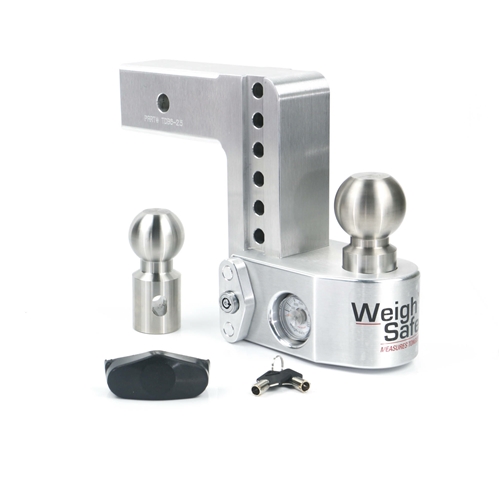

Weigh Safe Adjustable 2-Ball Trailer Hitch Mount with Built-In Scale - 2" Hitch - 6" Drop - 7" Rise
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Additional Product Information
With Built-In Weight Scale
|
Hitch Size |
Drop
|
Rise
|
GTW 2" Ball
|
GTW 2-5/16" Ball
|
Tongue Weight
|
Product Code
|
|
2"
|
6"
|
7"
|
8,000 lbs
|
10,000 lbs
|
1,500 lbs
|
WS6-2 |
|
2"
|
8"
|
9"
|
8,000 lbs
|
10,000 lbs
|
1,500 lbs
|
WS8-2 |
|
2.5"
|
10"
|
11"
|
8,000 lbs
|
14,500 lbs
|
2,200 lbs
|
WS10-2.5 |
|
3"
|
10"
|
11"
|
8,000 lbs
|
21,000 lbs
|
2,200 lbs
|
WS10-3 |
|
2"
|
10"
|
11"
|
8,000 lbs
|
10,000 lbs
|
1,500 lbs
|
WS10-2 |
|
2.5"
|
4"
|
5"
|
8,000 lbs
|
14,500 lbs
|
2,200 lbs
|
WS4-2.5 |
|
2"
|
4"
|
5"
|
8,000 lbs
|
10,000 lbs
|
1,500 lbs
|
WS4-2 |
|
2.5"
|
6"
|
7"
|
8,000 lbs
|
14,500 lbs
|
2,200 lbs
|
WS6-2.5 |
|
2.5"
|
8"
|
9"
|
8,000 lbs
|
14,500 lbs
|
2,200 lbs
|
WS8-2.5 |
|
3"
|
6"
|
7"
|
8,000 lbs
|
21,000 lbs
|
2,200 lbs
|
WS6-3 |
Without Built-In Weight Scale
| Hitch Size |
Drop
|
Rise
|
GTW 2" Ball
|
GTW 2-5/16" Ball
|
Tongue Weight
|
Product Code
|
|
2.5"
|
4"
|
5"
|
8,000 lbs
|
14,500 lbs
|
2,200 lbs
|
LTB4-2.5 |
|
2.5"
|
10"
|
11"
|
8,000 lbs
|
14,500 lbs
|
2,200 lbs
|
LTB10-2.5 |
|
2"
|
8"
|
9"
|
8,000 lbs
|
10,000 lbs
|
1,500 lbs
|
LTB8-2 |
|
3"
|
10"
|
11"
|
8,000 lbs
|
21,000 lbs
|
2,200 lbs
|
LTB10-3 |
|
2"
|
4"
|
5"
|
8,000 lbs
|
10,000 lbs
|
2,200 lbs
|
LTB4-2 |
|
2.5"
|
6"
|
7"
|
8,000 lbs
|
14,500 lbs
|
2,200 lbs
|
LTB6-2.5 |
|
2"
|
10"
|
11"
|
8,000 lbs
|
10,000 lbs
|
1,500 lbs
|
LTB10-2 |
|
2"
|
6"
|
7"
|
8,000 lbs
|
10,000 lbs
|
1,500 lbs
|
LTB6-2 |
|
3"
|
6"
|
7"
|
8,000 lbs
|
21,000 lbs
|
2,200 lbs
|
LTB6-3 |
|
2.5"
|
8"
|
9"
|
8,000 lbs
|
14,500 lbs
|
2,200 lbs
|
LTB8-2.5 |
|
3"
|
8"
|
9"
|
8,000 lbs
|
21,000 lbs
|
2,200 lbs
|
LTB8-3 |
|
|
|
|
|
|
|
