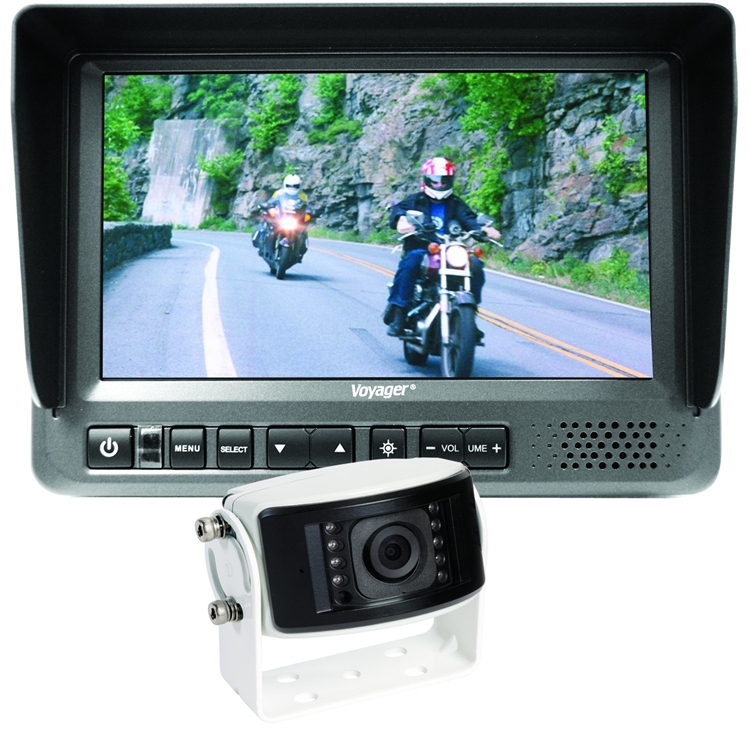

The Voyager AOS701 is a featured rich backup camera system with a LCD wide screen 7" color monitor. The system operates automatically when in reverse gear, with a manual override for viewing towed vehicle and rear traffic while driving. The rear camera's six infrared LED illuminators give you rear night vision without visible light. Monitor includes three camera inputs, speaker and volume controls, backlit user controls, power on-stand by, auto dimmer, snap-on sun-visor, and on screen display of menu features. Waterproof color camera has built-in microphone, IR LED illuminators, 150 degree viewing angle, ultra-low light reading CCD imager, and electronic iris for adjusting to extreme dark or bright lighting.
Features
-
Backlit controls
-
Integrated audio speaker
-
Three camera (A/V) inputs
-
Manual (push-button) or automatic (trigger) source selection
-
Turn-signal (pulsed DC) compatible trigger inputs (AV2, AV3)
-
Auto power on (standby)
-
Day and Night brightness modes
-
On Screen Display (OSD) for AV source, picture adjustment and volume level)
-
Non-volatile memory for picture and volume adjustment settings
-
Removable sun-visor included
-
Dimension: 7-3/4"W x 5-1/8"H x 1/2" D
-
NTSC and PAL video signal compatible
Camera Features
-
150 degree wide angle lens
-
High-resolution One Third" CCD color sensor
-
Waterproof design (IPX7)
-
Microphone
-
Normal mirror image switch
-
IR LED low light enhancement (0 Lux with IR LED on)
-
Electronic Iris
-
Compact lightweight aluminum die cast body
-
Color: White, also available in black finish(special order)
-
12 Volt DC power system
-
Dimensions: 2-5/7"W x 1-5/7"H x 4/7"D
Included: The AOS701 kit includes the AOM713 monitor, a CEC75 extension, and a VCMS155 camera. Voyager LCD Color Rear Observation System
|
|
|
