TST Cap Sensor Tire Pressure Monitoring System - Color - 8 Pack
TST TST-507-RV-8-C Cap Sensor Tire Pressure Monitoring System - Color - 8 Pack
TST Cap Sensor Tire Pressure Monitoring System - Color - 8 Pack

Alternative Views:


Price: $557.00
MFG P/N: TST-507-RV-8-C
MFG: TST

Quantity in Stock :5

Free Shipping
Availability: In Stock
Qty:

Description Instructions

Ensure safety and prevent tire blowouts by installing the TST TST-507-RV-8-C Cap Sensor Tire Pressure Monitoring System. This system accurately monitors tire pressure and temperature simultaneously in real-time, while offering you the ability to custom program high and low PSI settings on up to 4 axles.
  • Sensor Features:
    • Detect leaks and temperature variances quickly and reliably
    • Installation wrenches offer protection from theft
    • Industrial strength
    • Powered by user-replaceable batteries (CR1632)
    • Must remove non-flow-through sensor to add air and check tire pressure
    • Water-resistant
    • Easy to remove during seasonal storage to conserve and extend battery life
    • Replaceable seal for long-lasting durability
    • Dimensions: 0.96" diameter x 0.91" height
  • Color Monitor Features:
    • Full-color display
    • Can handle up to four trailers, and handle up to 115 tires.
    • Large illuminated display shows PSI and temperature simultaneously
    • Built-in rechargeable lithium-ion battery runs up to 36 hours wirelessly
    • Operates on vehicle 12-volt DC or hardware
    • Built-in antenna
    • Displays Read-Out Warnings
      • LO PRESSURE, HI PRESSURE, HI-TEMP, FAST LEAK, etc.
    • Buttons are on the front of the monitor; easily accessible and well labeled
    • Automatically drops any towing or towed trailer/vehicle that is not in range
    • You can park either the front or the back sensors
      • After you get to your destination you can drop the RV sensors off the display by hitting a few buttons
      • Now you can take the display to the towed vehicle to monitor the tires while driving around
    • Can handle up to 218 PSI
    • Customize high low pressure and temperature thresholds
    • HI-TEMP alarm is adjustable to be as low as you want
    • Automatic illumination adapts to any light level
    • Auto scrolls - No need to push buttons
      • Every few seconds it will display a different tire's PSI and template on the screen
      • The tire being shown will be blinking on the display
    • Flashing LED light and audible alarm indicate when pressure or temperature exceeds preset thresholds
    • Alerts can be read across the monitor
    • The range is upwards of 60 linear feet from the tire to monitor.

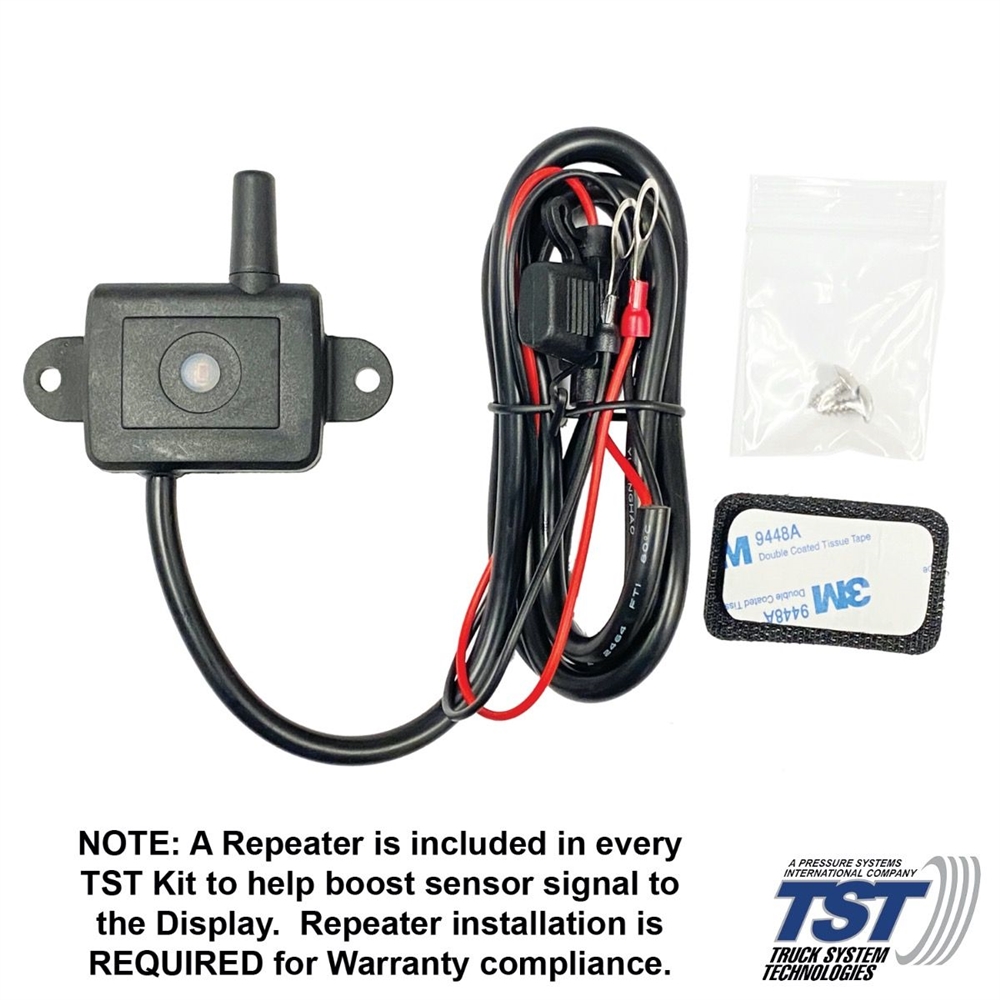

    • Even further range with the addition of easy to install repeaters
      • The repeater is used in instances when the distance between the receiver and sensors is greater than 34 ft.
    • Read pressure in PSI, BAR, Kpa, Kgf/cm2, temperatures in F or C

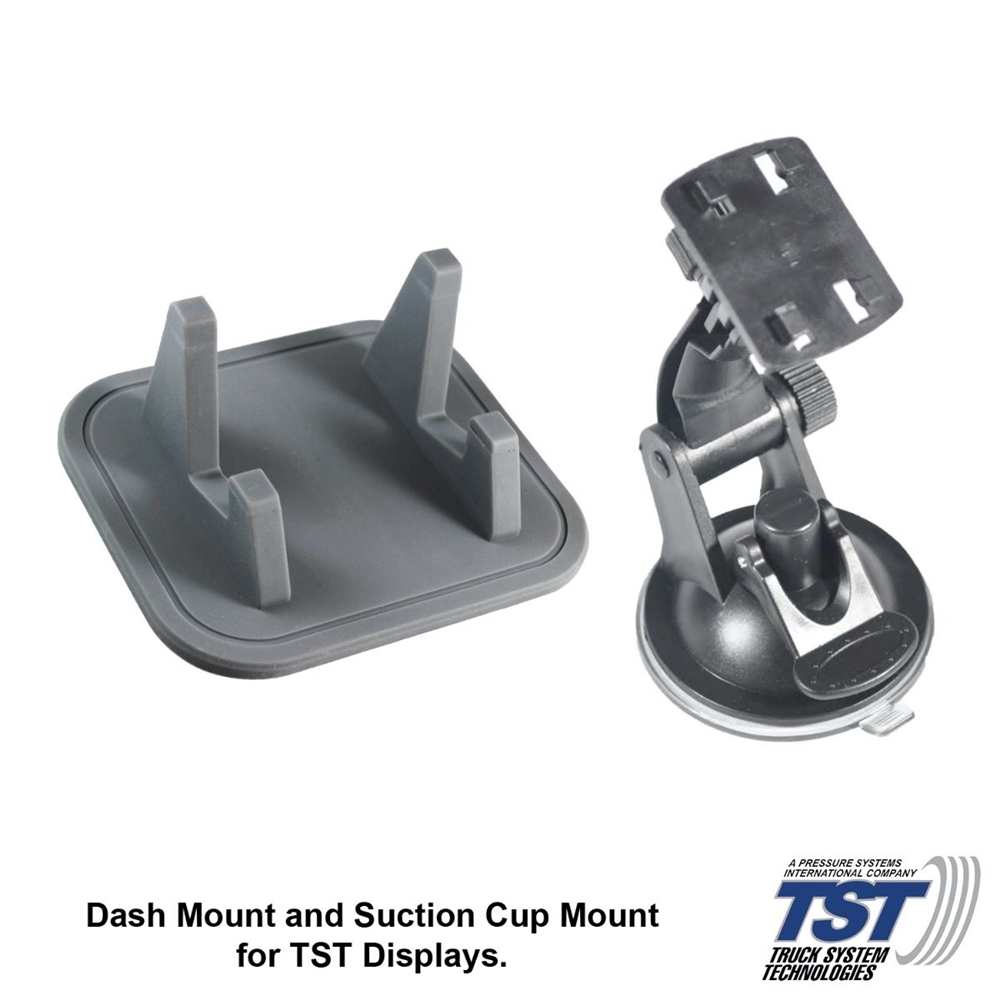

    • Easily installs with rubber dashboard mount or suction cup mount
    • Monitor Weight: 0.30 lbs
    • Monitor Dimensions: 4.6" length x 2.99" width x 1.06" depth.

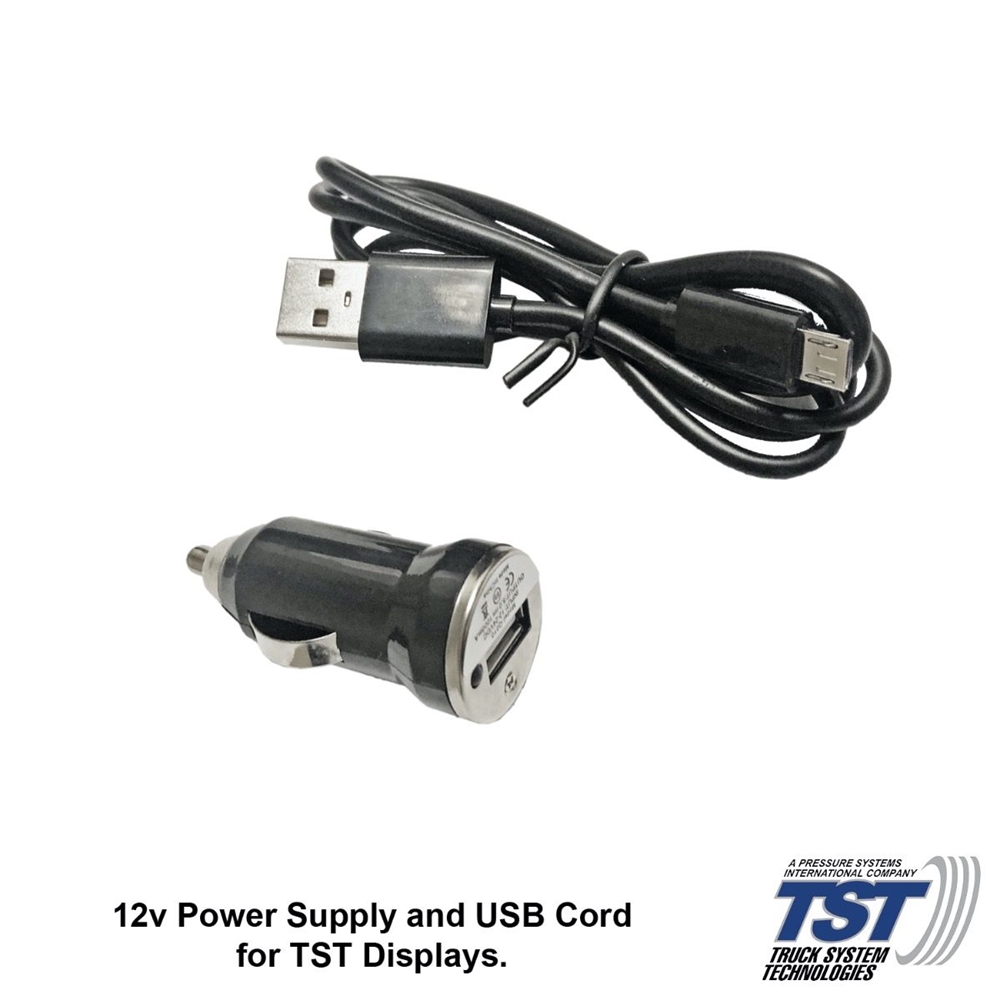

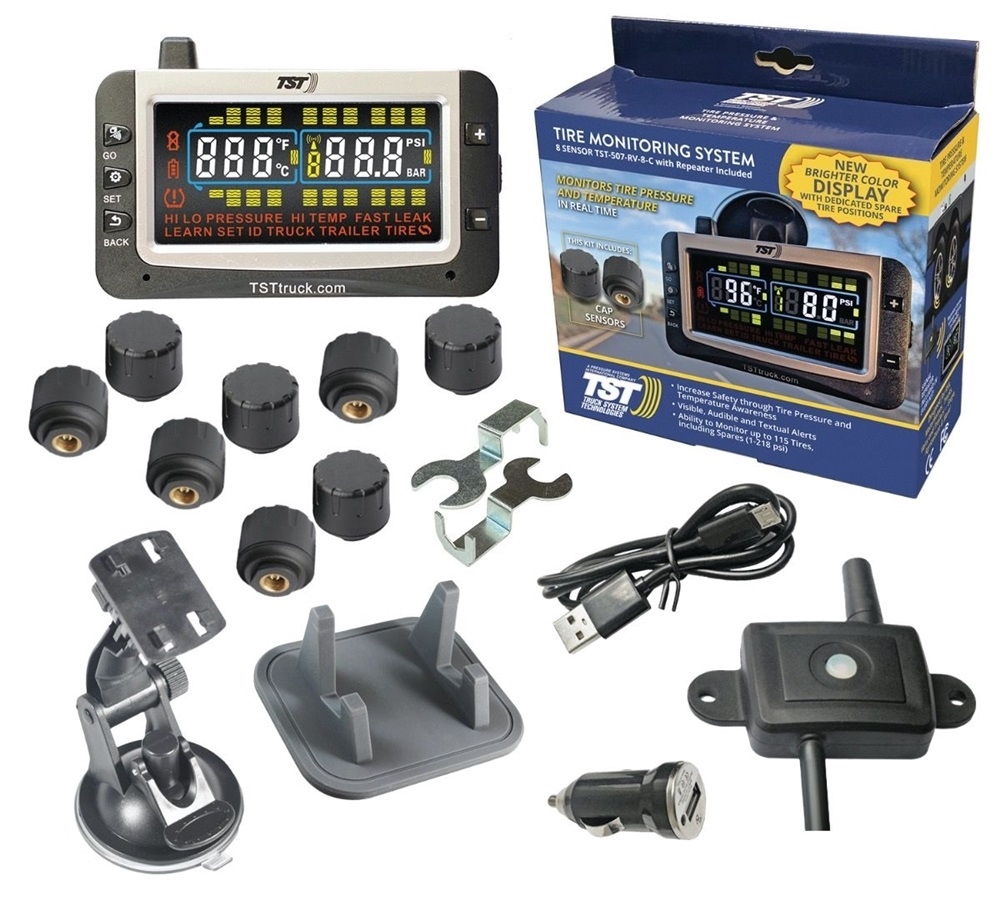

  • Includes: (2) Installation wrenches, (8) Screw-on cap style sensors, (1) Short antenna, (1) Dashboard mounting bracket, (1) Suction cup bracket, (1) Cigarette charger, (1) Repeater, (1) Hardwire kit, detailed user's manual, and the on-board color monitor display
  • Limited 3-Year Manufacturer Warranty.

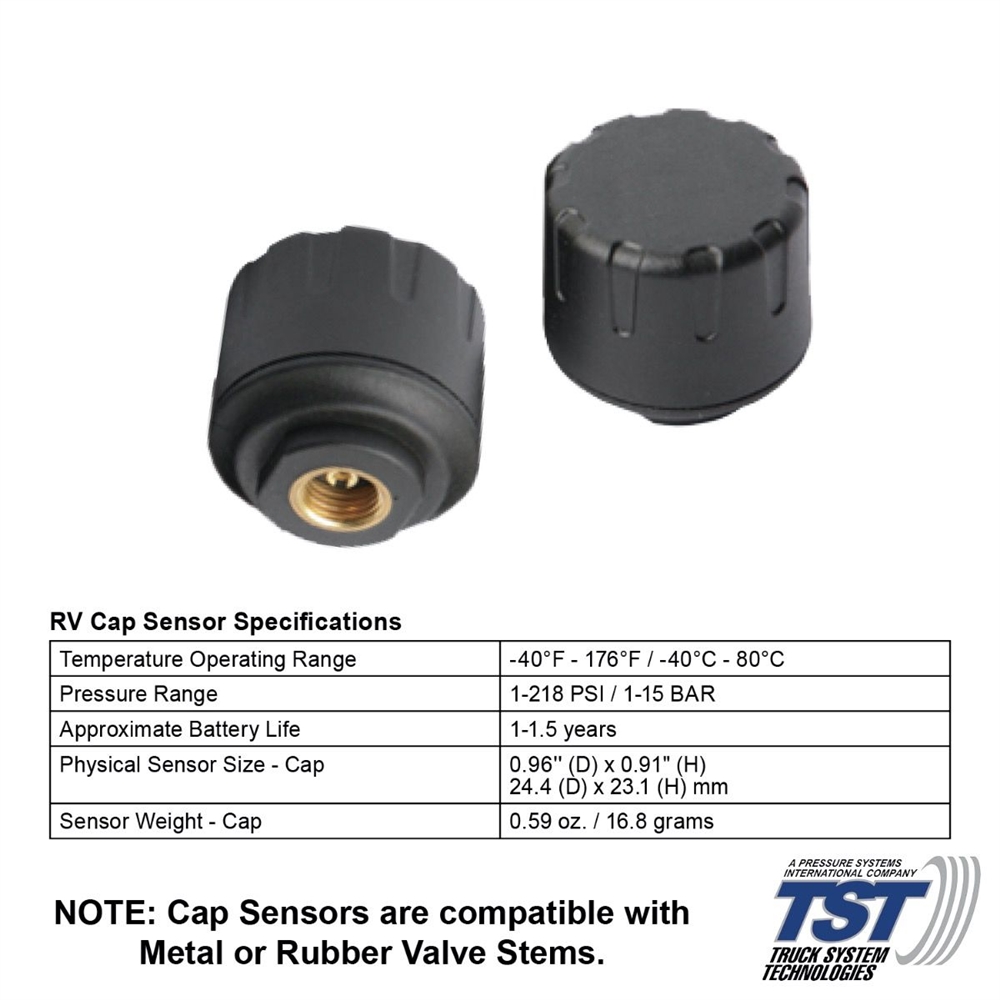

507 Sensor Specifications: Operating Temperature: -40 - 176 degrees F (-40 - 80 degrees C), Pressure Range: 1 - 218 psi, Pressure Sensitivity: +/- 1.5 psi, Temperature Sensitivity: +/- 1 degree F, Fast Leakage Alert: 6 psi within 12 seconds, Transmission Frequency: 433.92 MHz.

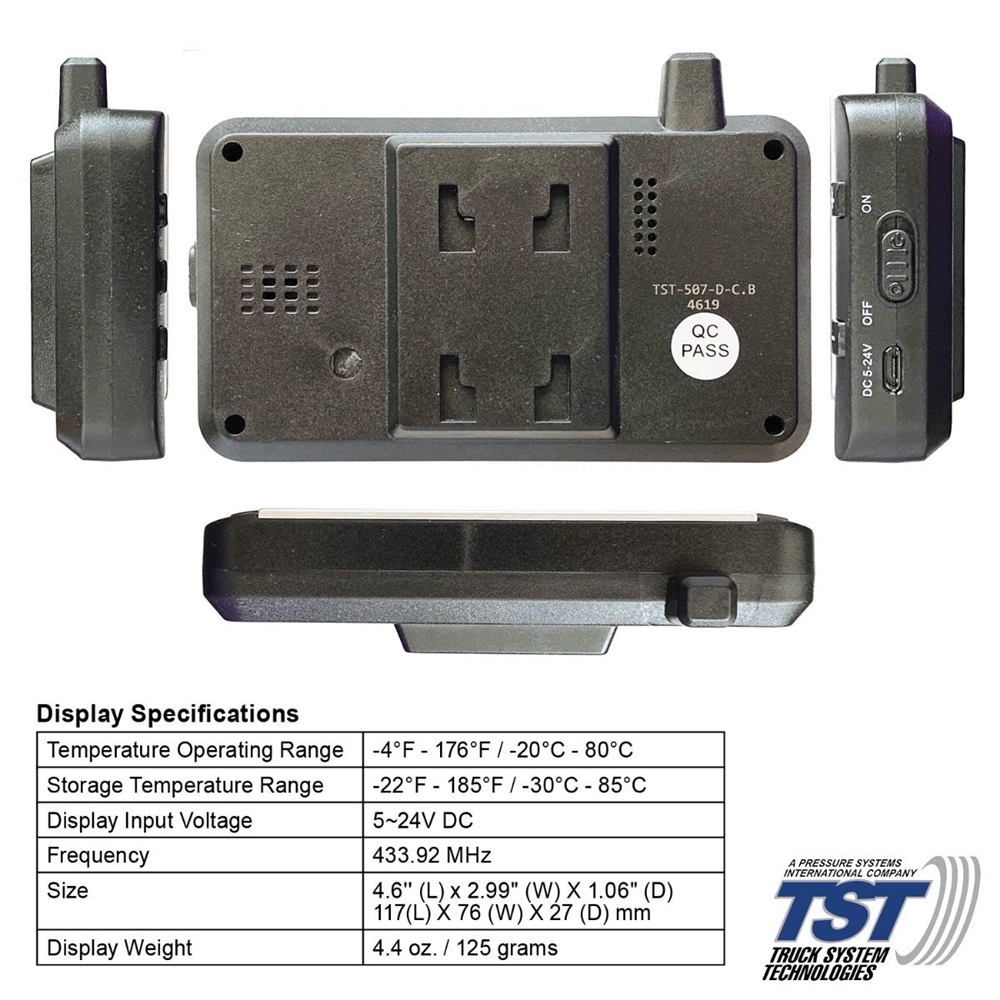

507 Monitor Specifications: Operating Temperature: -4 - 176 degrees F (-20 - 80 degrees C), Storage Temperature: -22 - 185 degrees F (-30 - 85 degrees C), Cigarette Plug (Charger) Input Voltage: 12 - 24 VDC, Frequency: 433.92 MHz.

TST Cap Sensor Tire Pressure Monitoring System - Color - 8 Pack

Additional Product Information
Differences between the 507RV, 507FT and 510TPMS:
The 507RV and 507FT is just the type of sensors. The 507RV has regular sensors and the 507FT have flow thru that allow you to add or remove air and check tire pressure with out removing the sensors. The flow thru's are also longer than the regular sensors.

The differences between the 507 and the 510 are the batteries in the 507 sensors are replaceable and should be replaced once a year. The 510 batteries last 5 years and they are non replaceable, you can send them back to the manufacturer and they will replace them (for a small fee). The 510 sensors are also completely sealed, so they are waterproof, perfect for boat trailers. Lastly the 507 sensors are easier to set up, the sensor has a button to hold down and it will sync to the monitor. The 510 you have to manually enter the numbers for the sensors.
