Overview

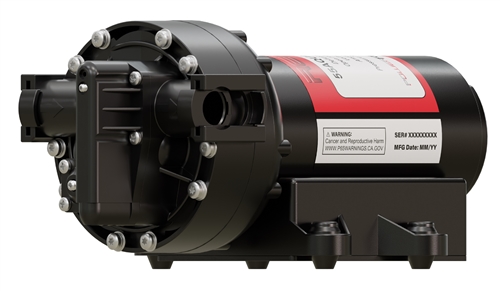

The Remco 55AQUAJET-ARV24 is a variable-speed water pump that delivers 65 PSI at 5.3 GPM and features field-proven reliability and patented variable-speed technology. The Remco AquaJet has earned a reputation as the finest and most advanced RV water system pump on the market because of its powerful, just-like-home, performance.
Features
- On demand pump features thermal protection, low amp draw, quick connect fittings, and industry-standard mounting pattern
- Five-chamber high-volume design
- Dramatically quieter than competitive pumps at similar performance levels
- Pump is self-priming, and can be run dry
- The exclusive “soft start” feature eliminates rapid cycling noises
- Digitally controlled pump that automatically adjusts motor speed to maintain pressure
- Speed Controller: Factory set to approximately 10 Amps max. thermally protected to avoid component damage
Specifications
- Motor type: 24 VDC, permanent magnet, totally enclosed, non-ventilated
- Rated up to 10 amps
- Power Leads: 14 AWG, 12" long, black negative, red positive
- Pump Design: 5-chamber diaphragm pump, self-priming, capable of being run dry
- Pump Housing: Polypropylene
- Controller Housing: Nylon
- Diaphragm: Santoprene
- Fasteners: Stainless Steel
- Liquid Temperature: 140 F (60 C) max.
- Pump Certifications: IAPMO, NSF
- Priming Capabilities: 13 feet
- Includes: Pump with 12" wiring leads, (2) 1/2" threaded fittings, and installation instructions.
- Dimensions: 8.89" L x 4.84" W x 4.60" H
- Weight: 10 lbs.
Instructions
Remco Aquajet Variable Speed 5.3 GPM RV Water Pump, 24V DC, 65 PSI
|
|
|
 |
|
 |
|
