• Applications:
  • Agricultural/Industrial Chemical Spraying
  • Liquid Fertilizers
  • Soft Washing/Beaching
  • Dust Suppression
  • General Industrial
• Designed to with stand long duty cycles.
  • Up to a motor temperature of 180 degrees
• Compatible with most common agricultural chemicals including
  • herbicides
  • fertilizers
  • insecticides
  • This pump is not listed for potable water use.
  • NOT FOR USE WITH GASOLENE OR ANY PETROLEM PRODUCTS
• Motor:
  • 12 VDC Permanent Magnet, Sealed Intermittent Duty
  • Voltage Range: 11.5 VDC – 14.5 VDC
  • Max Amps: 24.5 Amps at 60 PSI
  • Fuse: 30 Amp Recommended
  • Control: Pressure switch
  • Maximum Shell Temperature of 180 F
  • Wire Leads: 12 AWG - 12" in length
  • IP Rating: IP65
• Pump:
• 5 Chamber Diaphragm
• Maximum Flow: 7.0 GPM
• Inlet/Outlet Ports: 3/4" Quick Attach Female Ports
• Max Liquid Temp: 140 F
• Vertical Prime: up to 14 feet
• Run Dry: Yes
• Pressure Setting: 60 PSI [4.1Bar]
• Dimensions: 8.9" length x 5" width x 4.6" height
• Includes (1) 1/2" straight hose barb fitting, and (1) 1/2" elbow hose barb fitting.
• Weight: 10.2 lbs.
• OEM P/N: 5518-1E1-94A.
• Made in the USA.
• Fatboy series installation manual

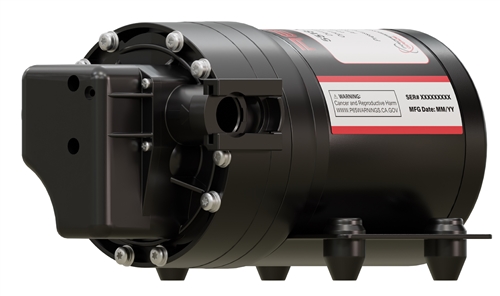

Remco Professional Grade Fatboy 7.0 GPM, 60 PSI On Demand, 12V Sprayer Pump, 3/4" QA Female Ports
