Blue Ox Baseplate For 2005-2007 Jeep Liberty

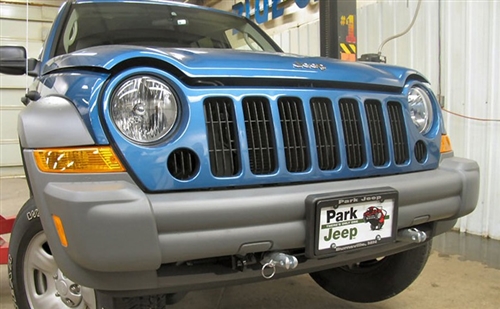

Blue Ox BX1122 Baseplate For 2005-2007 Jeep Liberty

Blue Ox Baseplate For 2005-2007 Jeep Liberty

Alternative Views:

Price: $483.35

MFG P/N: BX1122
MFG: Blue Ox
UPC #: 798459010816
SHIPS: In 1 Business Day

Quantity in Stock :12

Availability: In Stock

Qty:

Description

Instructions

The Blue Ox BX1122 Baseplate For 2005-2007 Jeep Liberty is easy on your suspension and even easier on the eye because Blue Ox has designed it with hidden reinforcements. Please confirm with your Jeep dealer to ensure that your model and year can be towed 4 wheels down.

The base plate features removable tabs for a discreet look.
DIY bolt-on application.
Part Number: BX1122
Fits 2005 thru 2007 Jeep Liberty.
Works with Blue Ox Aventa LX, Aladdin, Alpha, Avail and Allure tow bars.
Tab Height: 19".
Tab Width: 20".
Weight: 37 lbs.
Instructions and installation hardware included.
Limited 3-Year Manufacturer Warranty.
Made in the USA.
Find your base plate here

Important Installation Notes:

Bumper fascia must be removed and replaced during installation.
Requires some minor drilling.
Use only with motorhome mount tow bars or the BX8833 or BX88151 adapters (not included).
Removable tabs with only one (1) hole will not attach to car mount tow bars or other adapters.
The Acclaim may only be used with removable tab baseplates that have a 22” or greater spaced tabs.
The Adventurer may be used with baseplates having 18”-41” spaced removable tabs.
The Ambassador may only be used with 24” spaced removable tabs.
