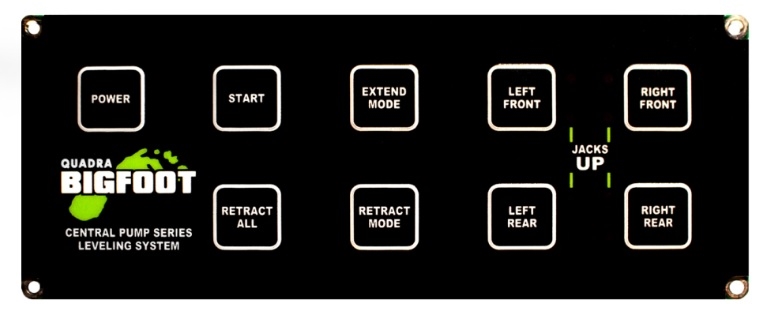

The Bigfoot AKC-TT Bumper Pull Central Pump Automatic Leveling System is the ultimate upgrade to make your RV'ing experience so much easier. This automatic hydraulic leveling system features a control panel that allows you to select one button to get your RV level. Other great features include an all-up light to acknowledge that all the jacks are up prior to driving off, manual leveling when the site you're on is way out of level, and an emergency retract button to retract all four jacks simultaneously in emergency situations. The Bigfoot Manual Leveling system comes complete with brackets, hoses, pumps, controls, and cylinders.
- Simple, one-touch operation for fully automatic leveling.
- Designed for bumper pull central chassis.
- The system requires drilling or welding frame to install.
- Important: Any existing frame brackets must be removed prior to installation.
- Individual power units at each leveler mean nearly 4x the pump life compared to ordinary central pump systems.
- All-Up safety feature signals if one or more of the cylinders are not fully retracted before you drive off.
- Manual adjustment feature that allows you to operate each cylinder individually.
- Front two powder-coated cylinders capable of 8,000 lbs each, with 18" stroke cylinders.
- Rear two powder-coated cylinders capable of 12,000 lbs each, with 14" stroke cylinders.
- Four weatherproof hydraulic power units, each with American-made marine pumps & motors wrapped in a steel housing for protection from road spray.
- It may be used with RV SnapPad BF-7 jack pads, see BF7SP4
- 100 square inch pads for secure ground contact during operation.
- All necessary components and hardware are included for a complete installation.
- For installation by Quadra MFG (Bigfoot) in White Pigeon, Michigan, Click Here For Pricing and Details.
- Weight: 245 lbs.
- Lifetime Manufacturer Warranty On Cylinders, 2 Years On Parts, 1 Year On Labor.
- Made in America.
Any questions? Please call us at #866-332-7881 and we will be happy to assist you.Bigfoot Bumper Pull Central Pump Automatic Leveling System
|
|
|
